Looking for a hinge that’s strong, silent, and completely hidden?

This DIY stainless steel concealed folding door hinge is designed to deliver smooth operation, high load capacity, and a clean modern look — all while staying completely out of sight.

Perfect for hidden doors, folding doors, cabinets, and furniture, it combines durability, flexibility, and elegant design in one powerful hardware solution.

No bulky hinges. No noise. Just perfect motion and a flawless finish. 🚪💡

🌟 Why You’ll Love This Concealed Hinge

🕶️ Fully Hidden Design (Invisible When Closed)

Clean, modern aesthetics for any space.

✔ Completely concealed when door is closed
✔ No visible hardware
✔ Perfect for minimalist interiors
✔ Enhances furniture and door appearance

Create a sleek, seamless look.

🔇 Silent & Smooth Operation

No noise, no friction.

✔ Built-in roller track mechanism
✔ Frictionless opening and closing
✔ No squeaking or sticking
✔ Ideal for quiet environments

Enjoy effortless and silent performance.

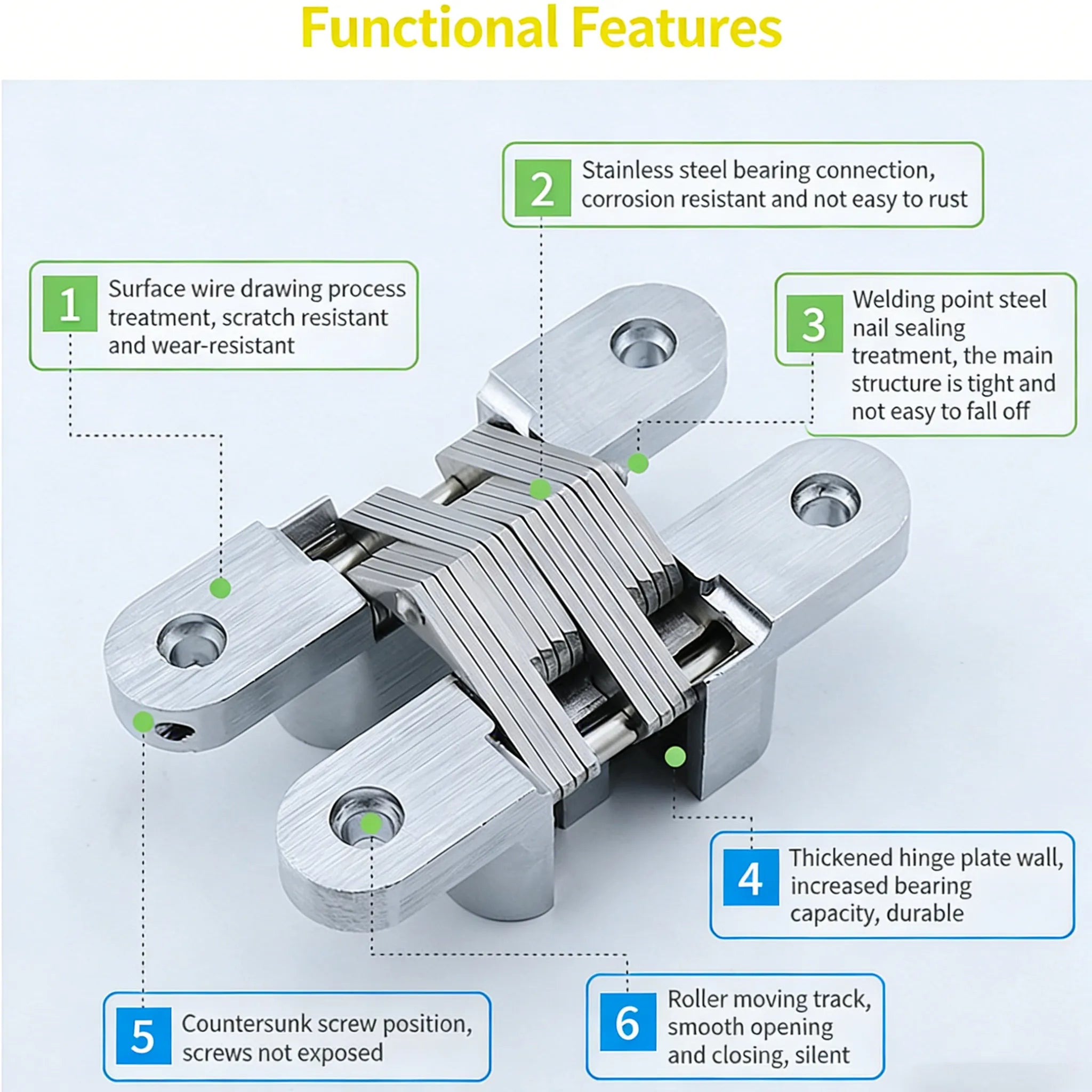

⚙️ Precision Engineering & Reinforced Design

Crafted for performance.

✔ Thickened base structure
✔ Reinforced weld points
✔ Secure steel pin connections
✔ Countersunk screw holes for flush fit

Every detail built for durability.

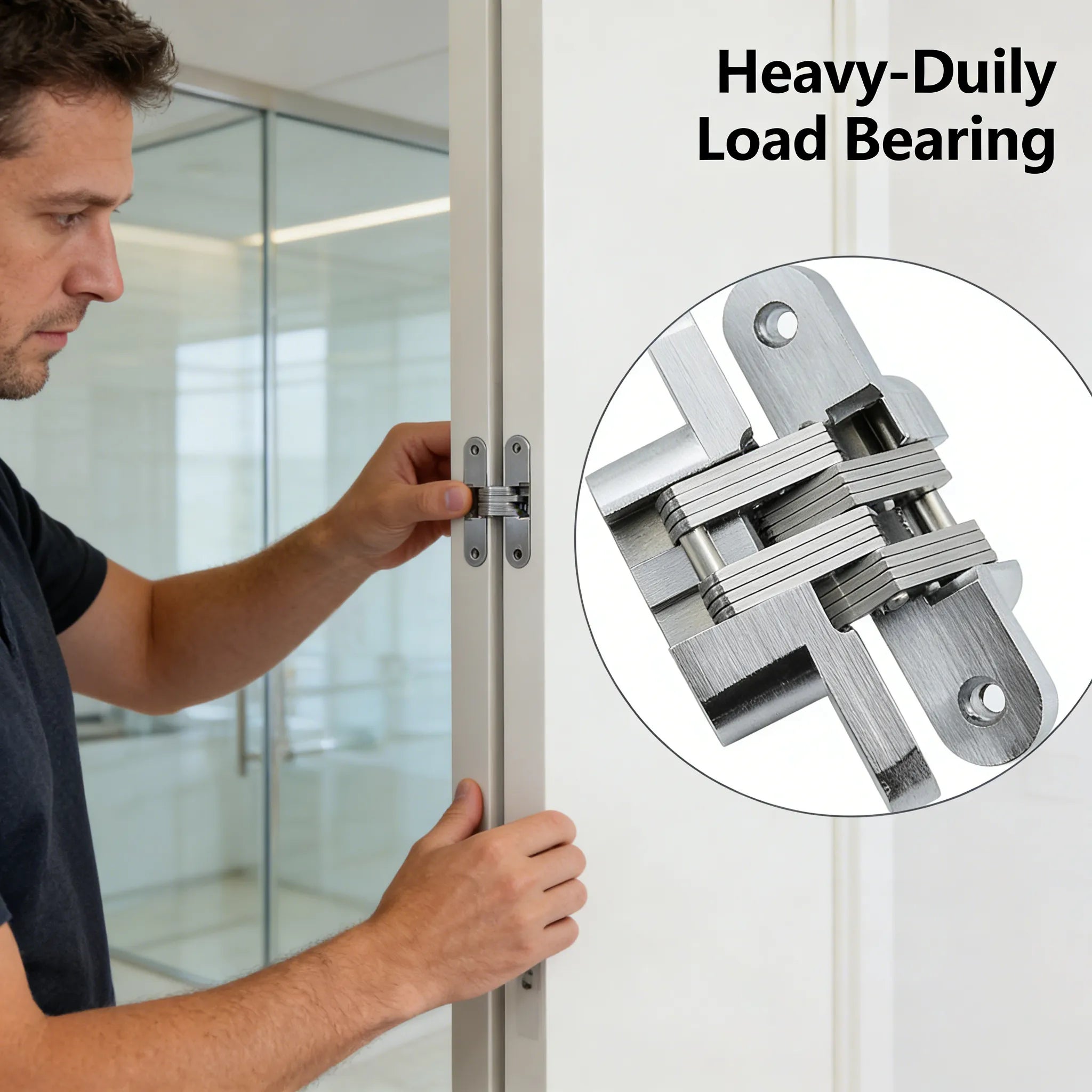

🧱 Heavy-Duty Load Bearing

Strong enough for demanding use.

✔ Reinforced hinge plates
✔ High load capacity (up to 22.05–39.68 lb per pair)
✔ Stable and secure support
✔ Suitable for furniture and doors

Built for strength and reliability.

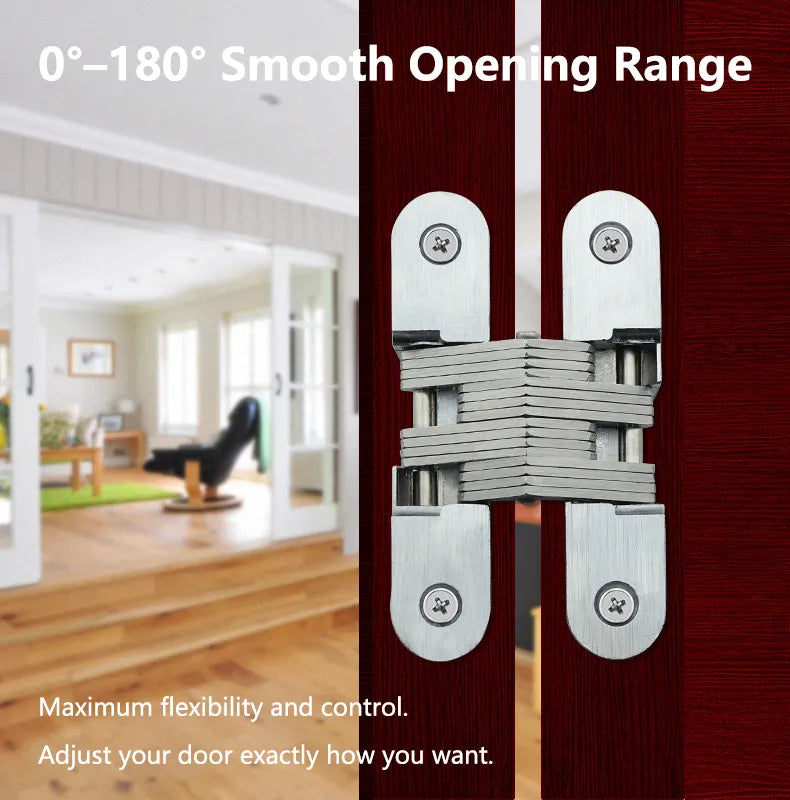

🔄 0°–180° Smooth Opening Range

Maximum flexibility and control.

✔ Opens fully up to 180°
✔ Free-stop at any angle
✔ Ideal for folding and hidden doors
✔ Smooth and precise movement

Adjust your door exactly how you want.

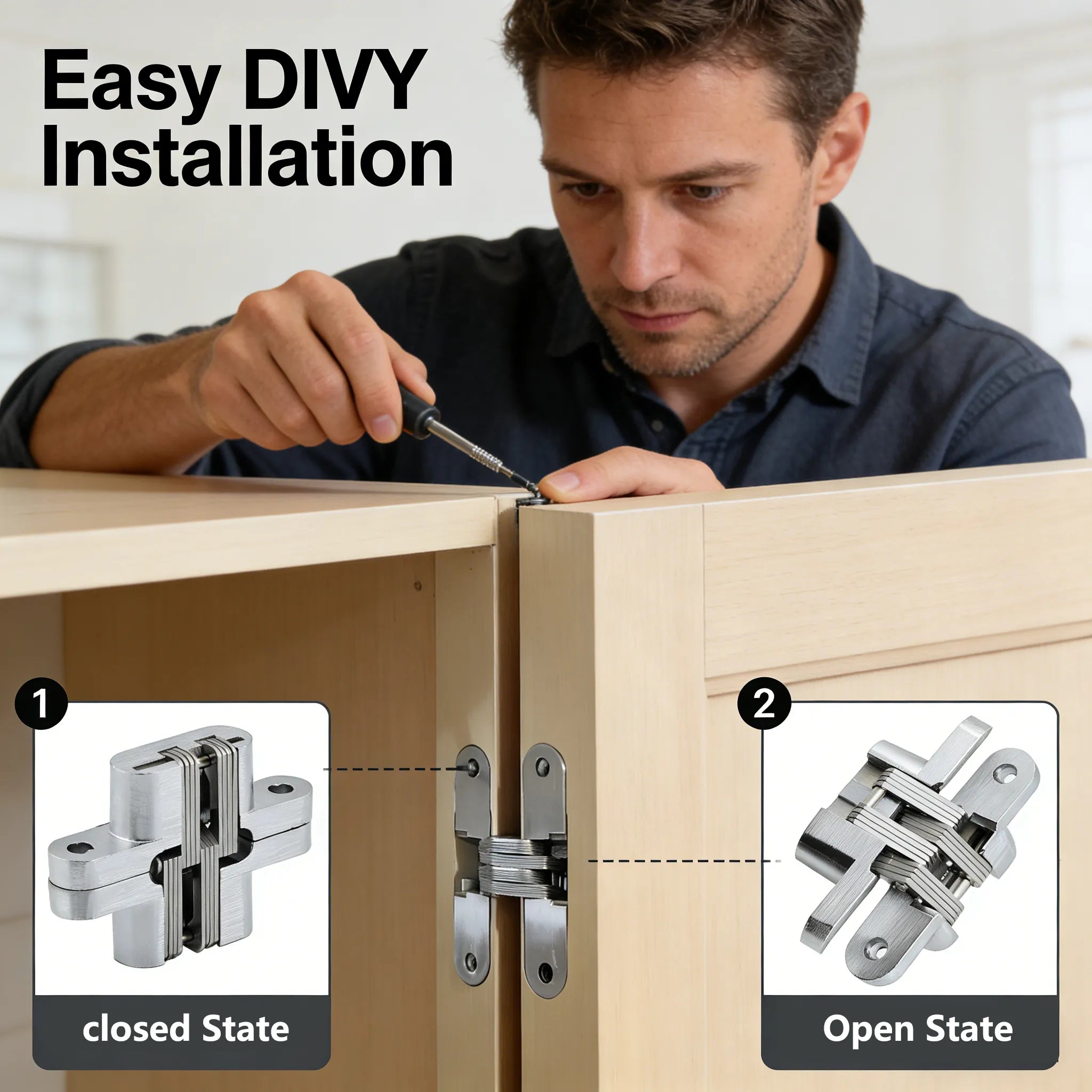

🛠 Easy DIY Installation

Simple and straightforward setup.

✔ Mortise and drill installation
✔ Includes mounting screws
✔ Secure and stable fit
✔ Ideal for DIY projects

Upgrade your furniture with confidence.

🛡 Premium Stainless Steel Construction

Durability you can trust.

✔ Corrosion-resistant stainless steel
✔ Rust-proof and long-lasting
✔ Scratch-resistant brushed finish
✔ Wear-resistant materials

Perfect for long-term use.

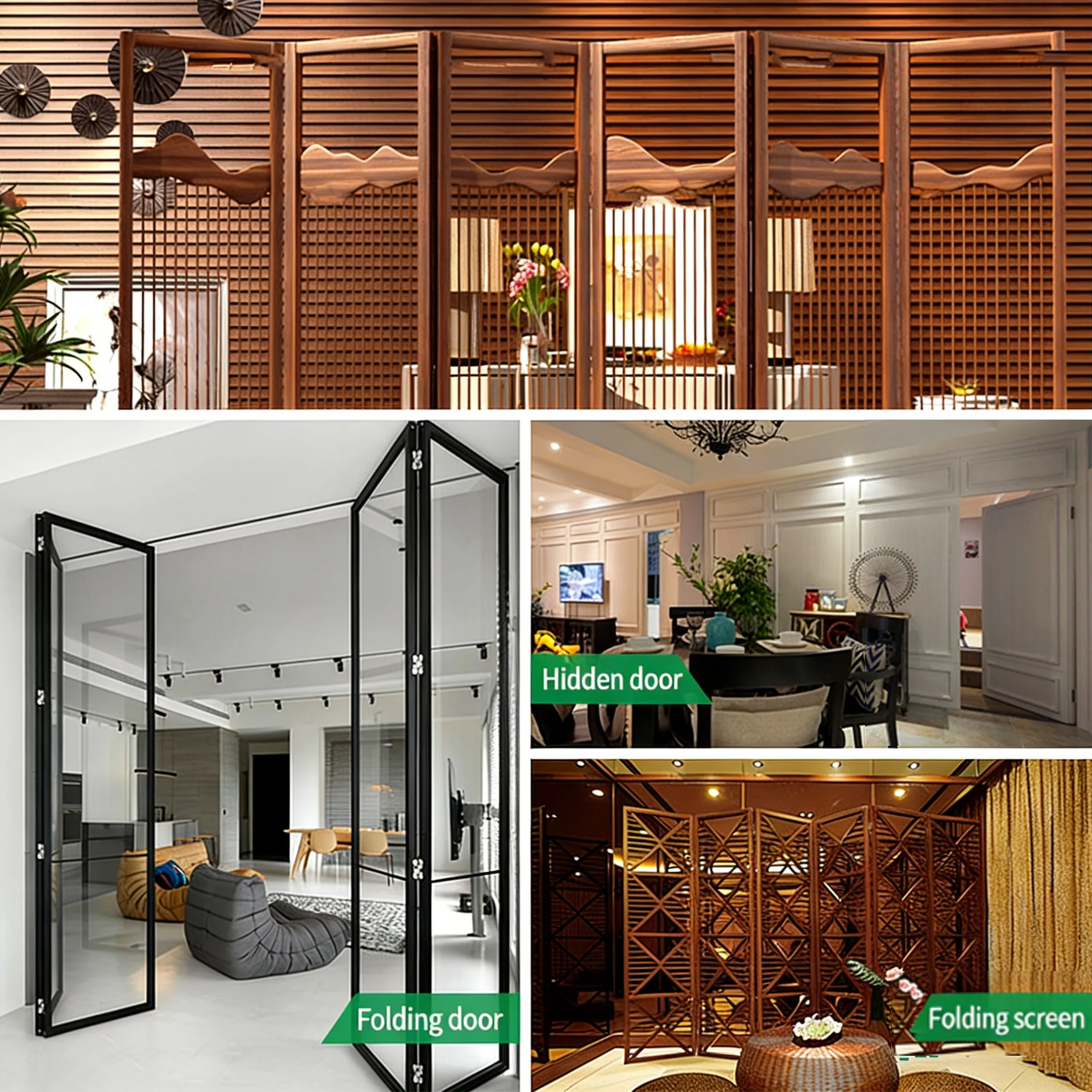

🏡 Perfect For

✔ Hidden doors 🚪

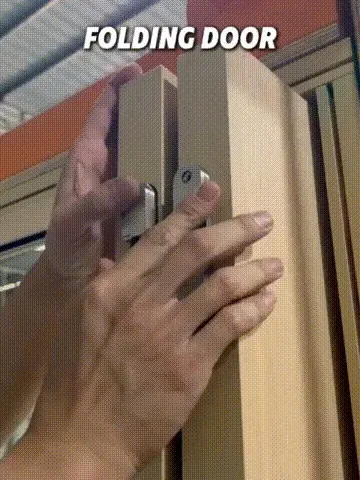

✔ Folding doors
✔ Cabinets & wardrobes 🧱
✔ Folding screens
✔ Custom furniture projects 🛠️

⭐ Customer Reviews

⭐ ⭐ ⭐ ⭐ ⭐

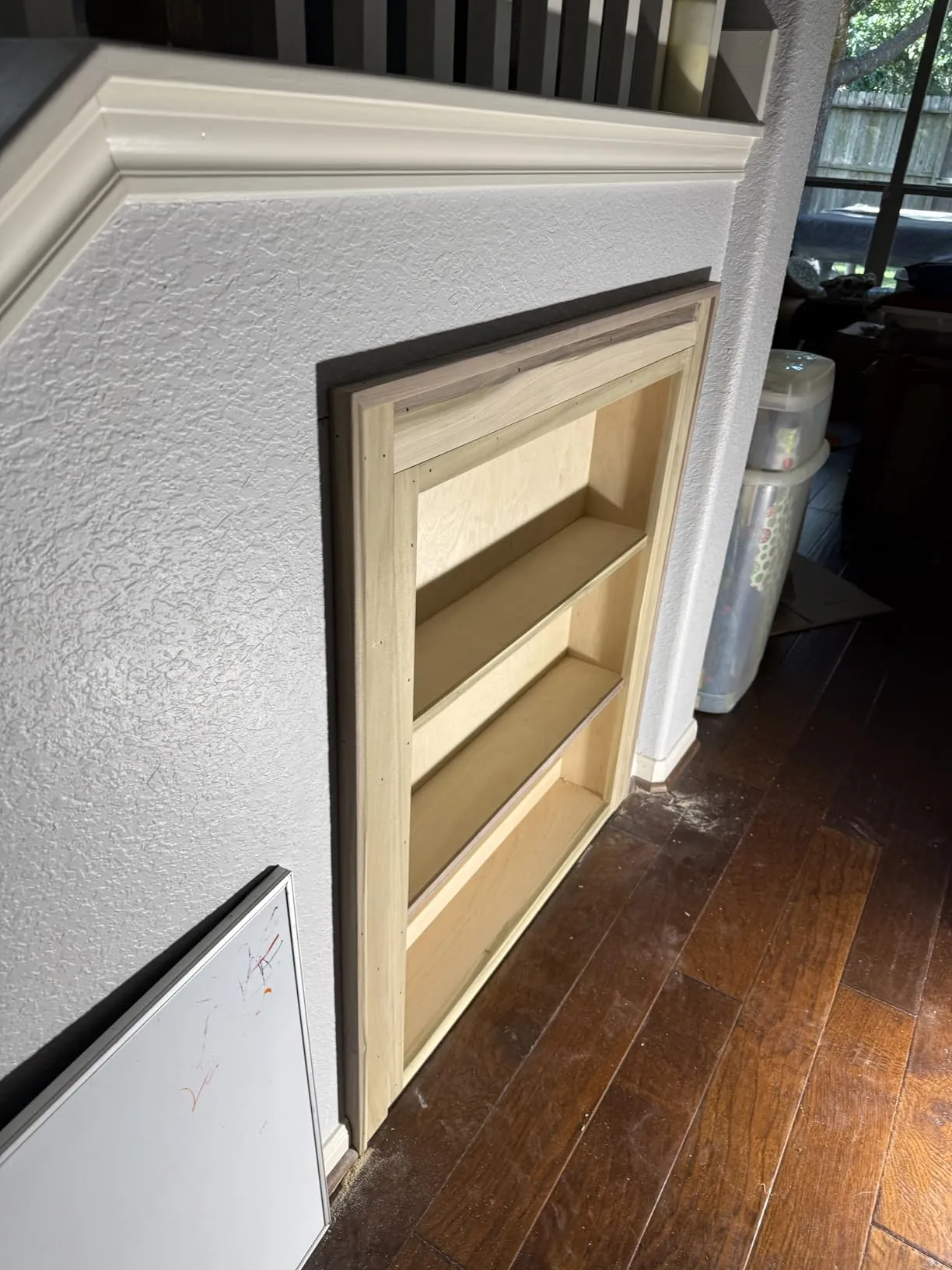

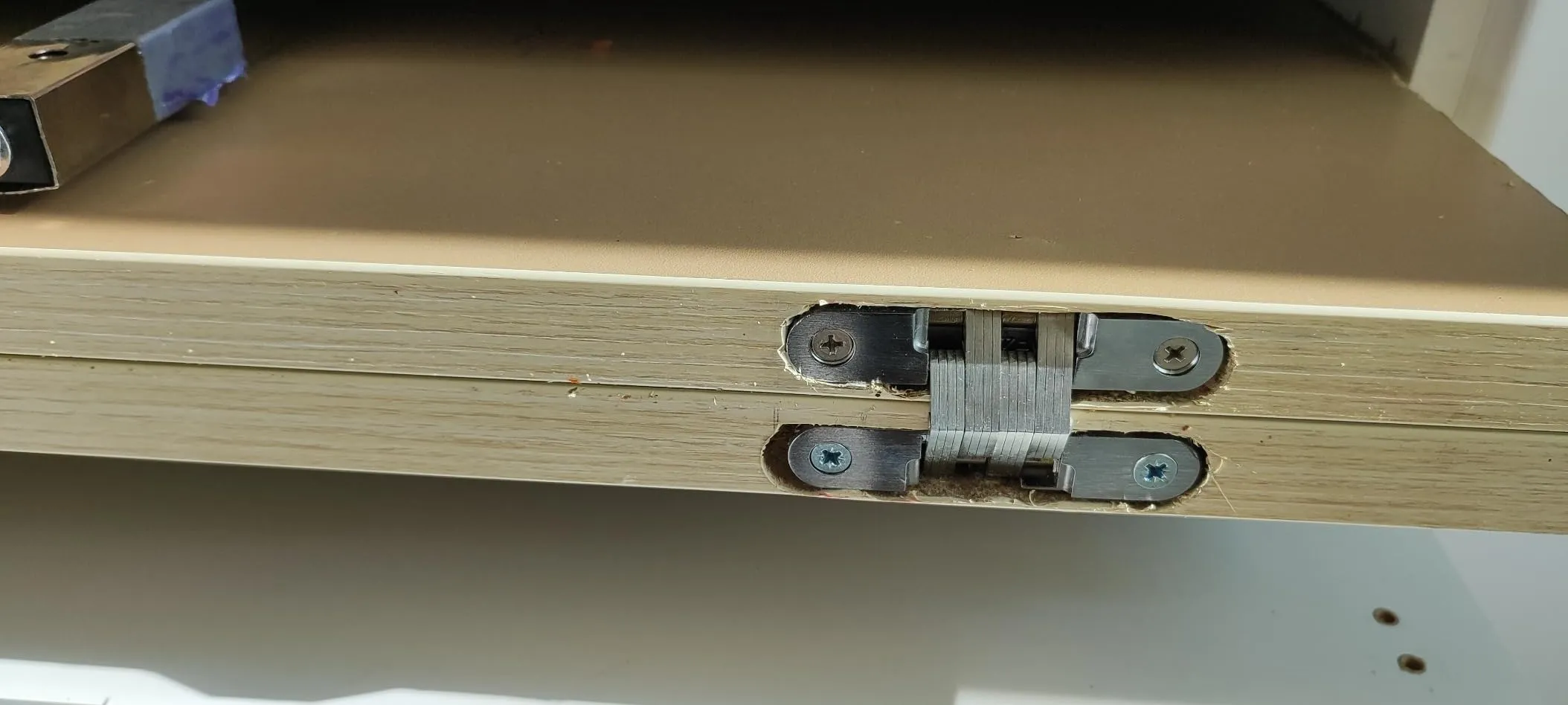

“Exactly what I needed for my hidden door project. Completely invisible and super smooth!”
— Brian Mitchell, Austin, Texas

⭐ ⭐ ⭐ ⭐ ⭐
“Very strong hinge. Holds my cabinet doors perfectly and operates silently.”
— Laura Jenkins, Portland, Oregon

⭐ ⭐ ⭐ ⭐ ⭐
“Installation was straightforward and the quality is excellent. Feels very durable.”
— Kevin Harris, Denver, Colorado

⭐ ⭐ ⭐ ⭐ ⭐
“Love the 180° opening feature. Makes my folding door much more functional.”
— Amanda Scott, Charlotte, North Carolina

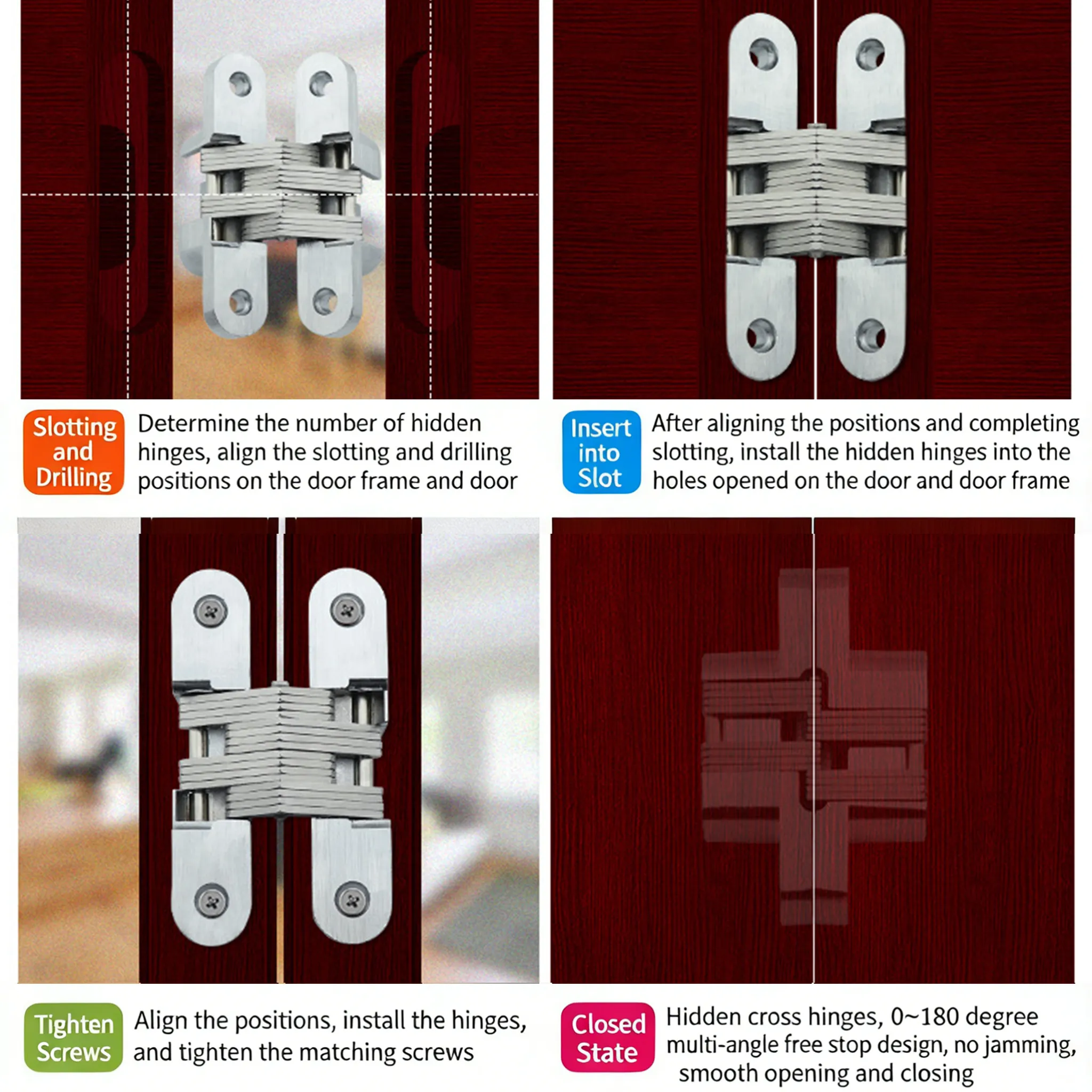

🛠 How to Install

1️⃣ Mark & Measure

Determine hinge placement and align door and frame positions.

2️⃣ Mortise the Surface

Create recessed slots in both the door and frame.

3️⃣ Insert the Hinge

Place the hinge into the mortised areas.

4️⃣ Secure with Screws

Tighten screws firmly into pre-drilled holes.

5️⃣ Test Movement

Open and close to ensure smooth, silent operation.

⚠️ Installation Tips

✔ Ensure precise alignment for best performance
✔ Use proper tools for mortising and drilling
✔ Choose correct hinge size based on load requirements
✔ Suitable for door thickness ≥ 0.79in / 0.98in (depending on model)

📏 Product Specifications

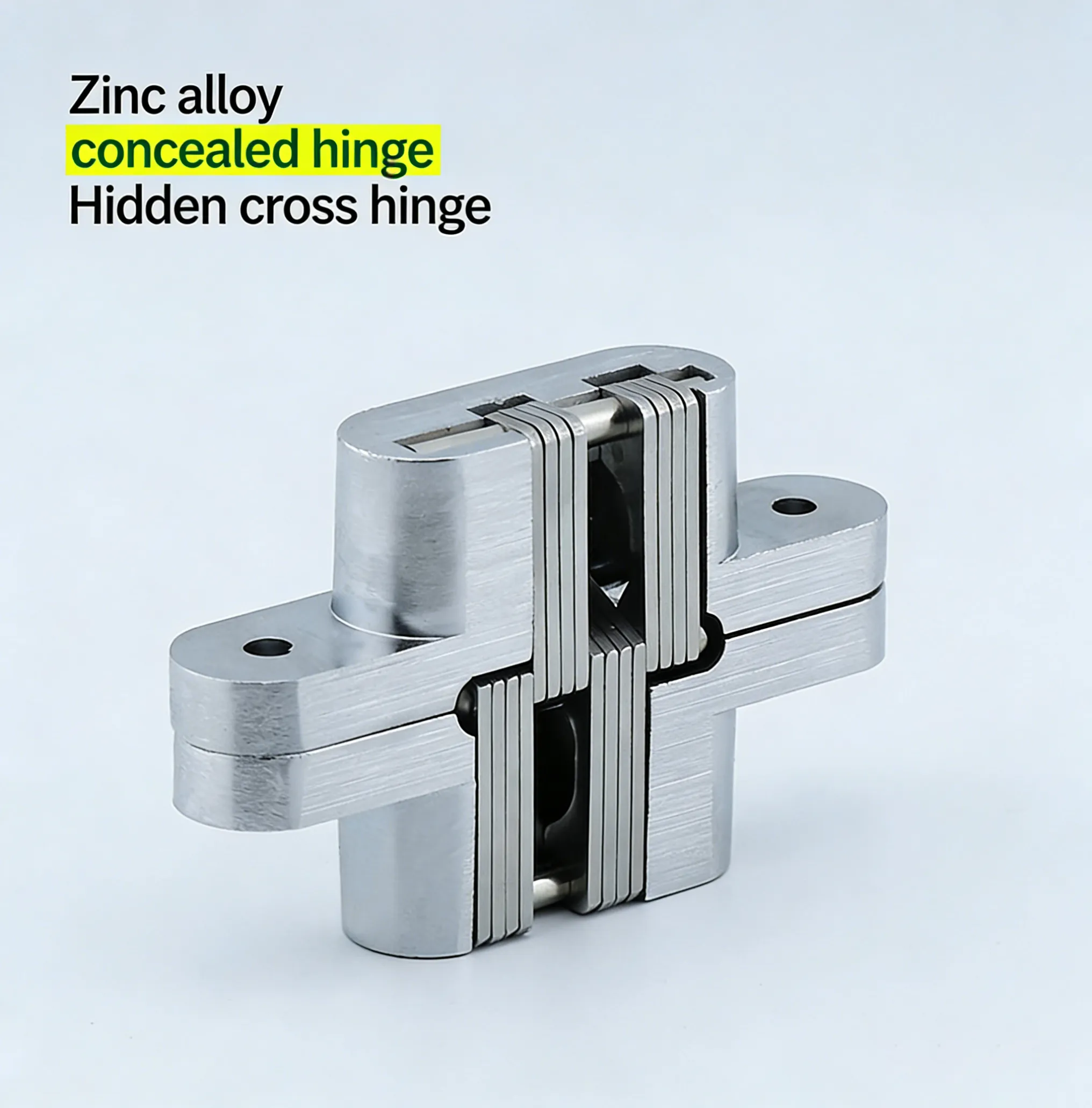

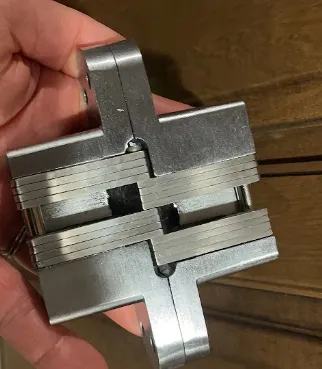

📦 Product Name: Concealed Cross Hinges for Invisible Doors, Folding Doors, and Folding Screens

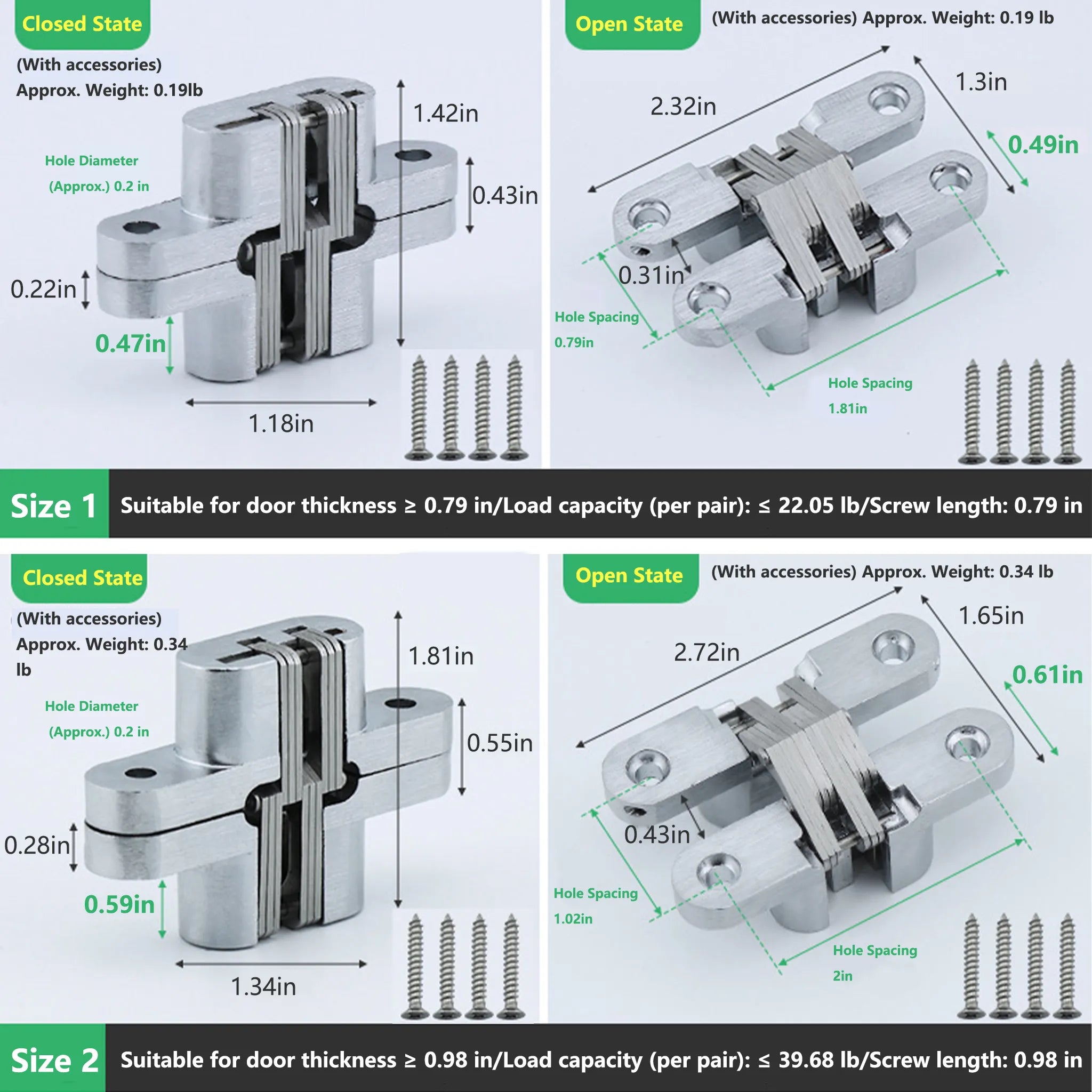

📐 Dimensions:

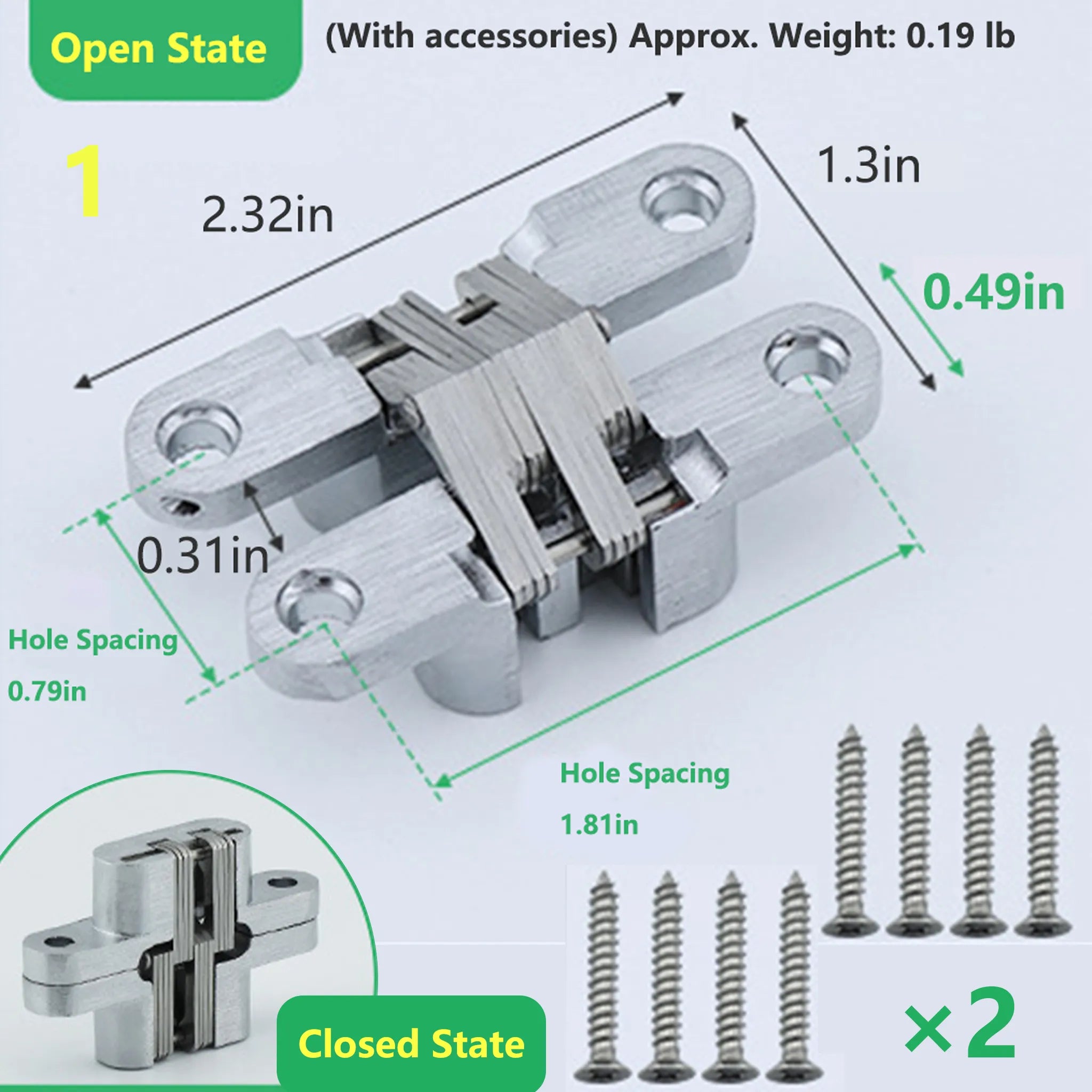

Size 1 Model:
• Open State: 2.32*1.3*0.69 in
• Suitable for door thickness ≥ 0.79 in
• Load capacity (per pair): ≤ 22.05 lb
• Screw length: 0.79 in

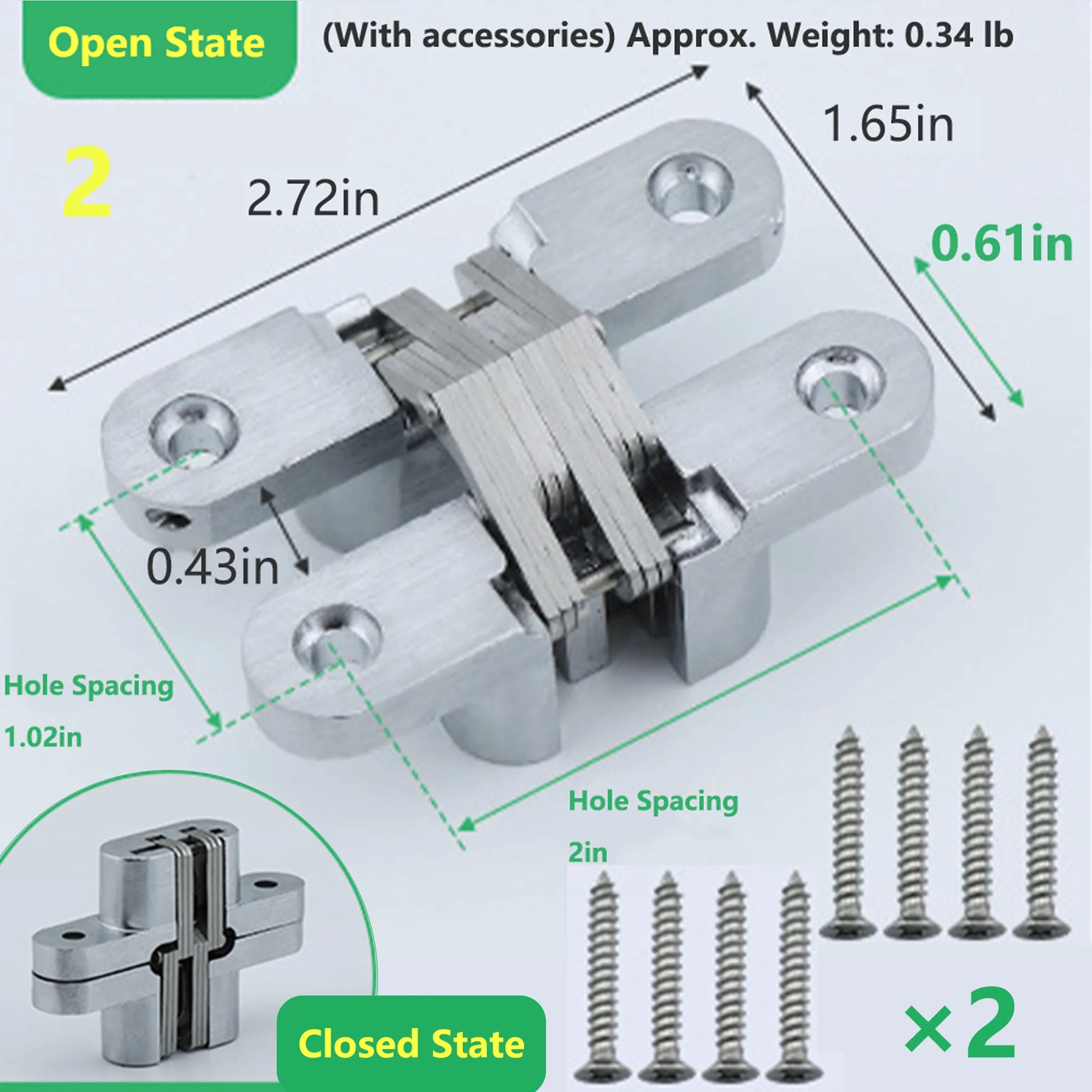

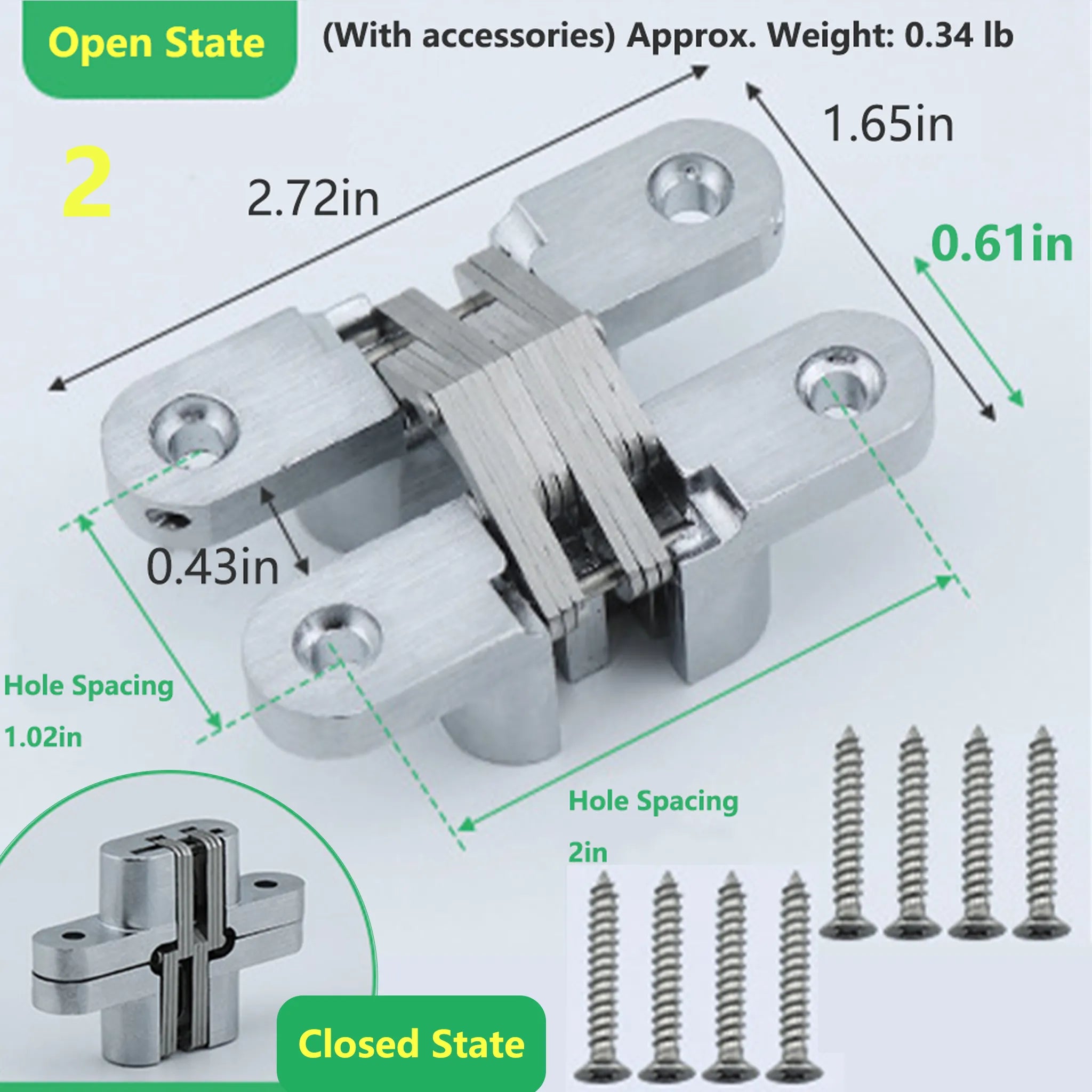

Size 2 Model:
• Open State: 2.72*1.65*0.87 in
• Suitable for door thickness ≥ 0.98 in
• Load capacity (per pair): ≤ 39.68 lb
• Screw length: 0.98 in

⚖ Weight:
• Size 1: Approx. 0.19 lb (Accessories included)
• Size 2: Approx. 0.34 lb (Accessories included)

🧱 Material:
• Stainless Steel
• Zinc Alloy Core Components

🎨 Finish:
• Brushed (scratch-resistant)

✨ Key Features:
✔ Hidden hinge design
✔ 180° opening angle
✔ Silent roller mechanism
✔ Heavy-duty construction
✔ Corrosion-resistant materials

❓ Frequently Asked Questions (FAQ)

Q: Is the hinge visible when the door is closed?

No. It is fully concealed, providing a clean and modern look.

Q: How much weight can it support?

Depending on the size, it supports up to 22.05–39.68 lb per pair.

Q: Does it open fully?

Yes. It offers a 0°–180° opening range with free-stop positioning.

Q: Is it difficult to install?

It requires basic DIY skills, including mortising and drilling.

Q: Is it rust-resistant?

Yes. Made from stainless steel and zinc alloy, it is highly resistant to rust and corrosion.

🛡 Customer Satisfaction Guarantee

We stand behind our quality.

✔ Carefully inspected before shipping
✔ Protective packaging
✔ Satisfaction-focused service

Your satisfaction matters.

🔩 Upgrade Your Doors with Precision

Experience the perfect balance of strength, silence, and style.

This concealed hinge delivers professional results for your home or project — with a finish you’ll love every day. ✨🚪
